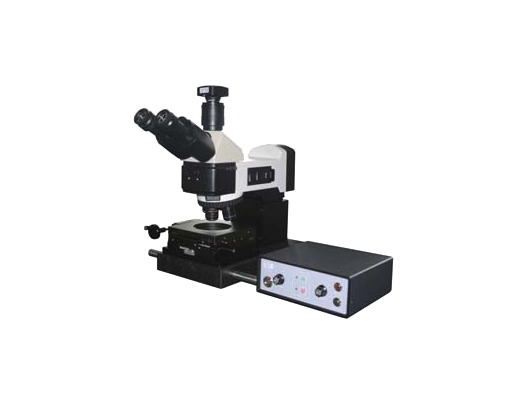

Transflective high-definition metallurgical microscopes are developed for the needs of the semiconductor industry, silicon wafer manufacturing, electronic information industry, and metallurgical industries. They can be used as advanced metallurgical microscope users to experience superior performance and can be widely used in semiconductors and FPDs. , circuit packaging, circuit boards, materials, castings / metal / ceramic parts, precision mold testing.
This instrument adopts two types of illumination: epi-illumination and transmission. In epi-illumination, bright and dark field observation, DIC observation, and polarized observation can be performed. Brightfield observation under transmitted light. Stable, high-quality optical system makes imaging more clear and better in contrast. Ergonomic design allows you to feel comfortable and relaxed at work.
High-speed spectral transmission technology for microsecond spectral detection
Low spurious technology
Full spectrum technology with wide spectrum coverage of 320 ~ 1100nm
UV sensitization technology enables deep ultraviolet spectroscopy detection
Spatial resolution: minimum 5X5um2
Optical system | Infinity optical system, tube lensf=200mm |
Observation tube | Trinocular tube (with 0.3XCCD adapter) |
Eyepiece | 1、Super wide field flat eyepiece WF10X/26mm； 2、WF10X/22mm，With 0.1mm cross reticle |
Objectives | Long Working Distance Plane Infinity Bright/Dark Field Objectives：5X/NA0.20(W.D=14.47mm)、10X/NA0.25(W.D=16.0mm)、 20X/NA0.40(W.D=10.5mm)、50X/NA0.55(W.D=5.1mm) |
Objective Converter | Large four-hole converter with DIC jack |
Stage | Precision measurement platform，Moving range 50mmX50mm，accuracy 3u+L/25 |
Filter | Color filter (green, blue, neutral) |
Focusing | Electric focusing |
Light Source | Transmission lighting： LED light 5W，Wide voltage AC85V—260V，Continuously adjustable brightness Reflected illumination：Kohler halogen lighting 12V50W，Wide voltage AC85V—260V，Continuously adjustable brightness with aperture diaphragm and field diaphragm |
Polarizer | Analyzer can rotate 360 degrees。Polarizer and analyzer can remove optical path |
Detection Tool | Standard ruler: 0.01mm micrometer |
Options | 1、Professional metallographic image analysis software with measurement function 2、Differential Interference (DIC) device 3、Long Working Distance Plane Infinity Bright/Dark Field Objectives：80X/0.75(W.D=4.0mm)、100X/0.80(W.D=3.0mm) 4、3 million pixels, 5 million pixels, 800,000 pixels, 10 million pixels CMOS 5、Digital display scale 6、Rotary table |
