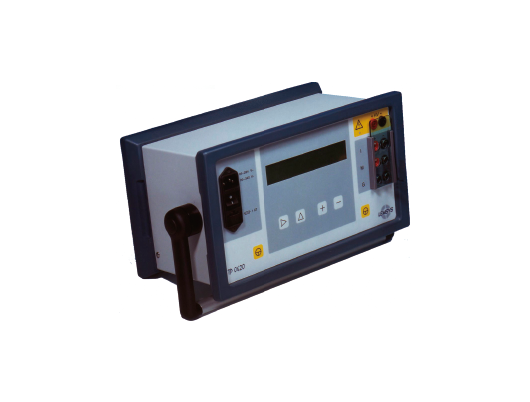

TP 0620 is designed for easy and fast functional control of the major power semiconductors in the lab or on site.
breakdown voltage VD-VR
leakage current ID - IR
forward voltage drop VF, VT
Forward voltage drop VF- VT
Applied current : 1 - 600 A
Voltage measure of : 0 - 10 V
Go-no go test : limits 0.0 - 9.9 V
Breakdown voltage VD - VR
Applied current: 0.1 - 10 mA
Voltage measurement : 50 - 2000V
Go-no go test : limits 50 - 1990V
Leakage current ID - IR
Applied voltage: 50 - 2000V
Measure of current: 0 - 10 mA
Test go-no go : limits 0.00 - 9.90 mA
